FEATURES
- 2in1 multi-function TIG and MMA operation
- Suitable for welding mild steel, stainless steel and cast iron
- Adjustable power settings and digital display to read and set current
- 2T/4T trigger operation to control gas pre-flow and post-flow
- High frequency arc-start TIG welding
- Hot start and anti-stick enabled MMA welding
- Auto protection from over-heat and over-current
- Lightweight and portable with carry handle
- Efficient IGBT inverter technology
- Fitted with UK 3 pin mains plug
- 1 YEAR WARRANTY
SPECS
- Input voltage: AC 230V, 50Hz
- Power rating: 3.5kW
- TIG output range: 20-180A
- MMA output range: 20-160A
- Duty cycle: 100% @140A, 60% @180A
- Suitable MMA electrode size: 1.6-3.2mm
- Suitable TIG rod size: 1.0-3.2mm
- Weld thickness: Up to 5mm
- Dinse plug size: 35-50
- Torch consumables: WP17
- Gas inlet: 8mm hose tail to fit 8mm ID hose
- Standards: CE, UKCA, IP21S protection, F class insulation
- Machine weight: 10kg
- Machine size: 410 x 160 x 300mm

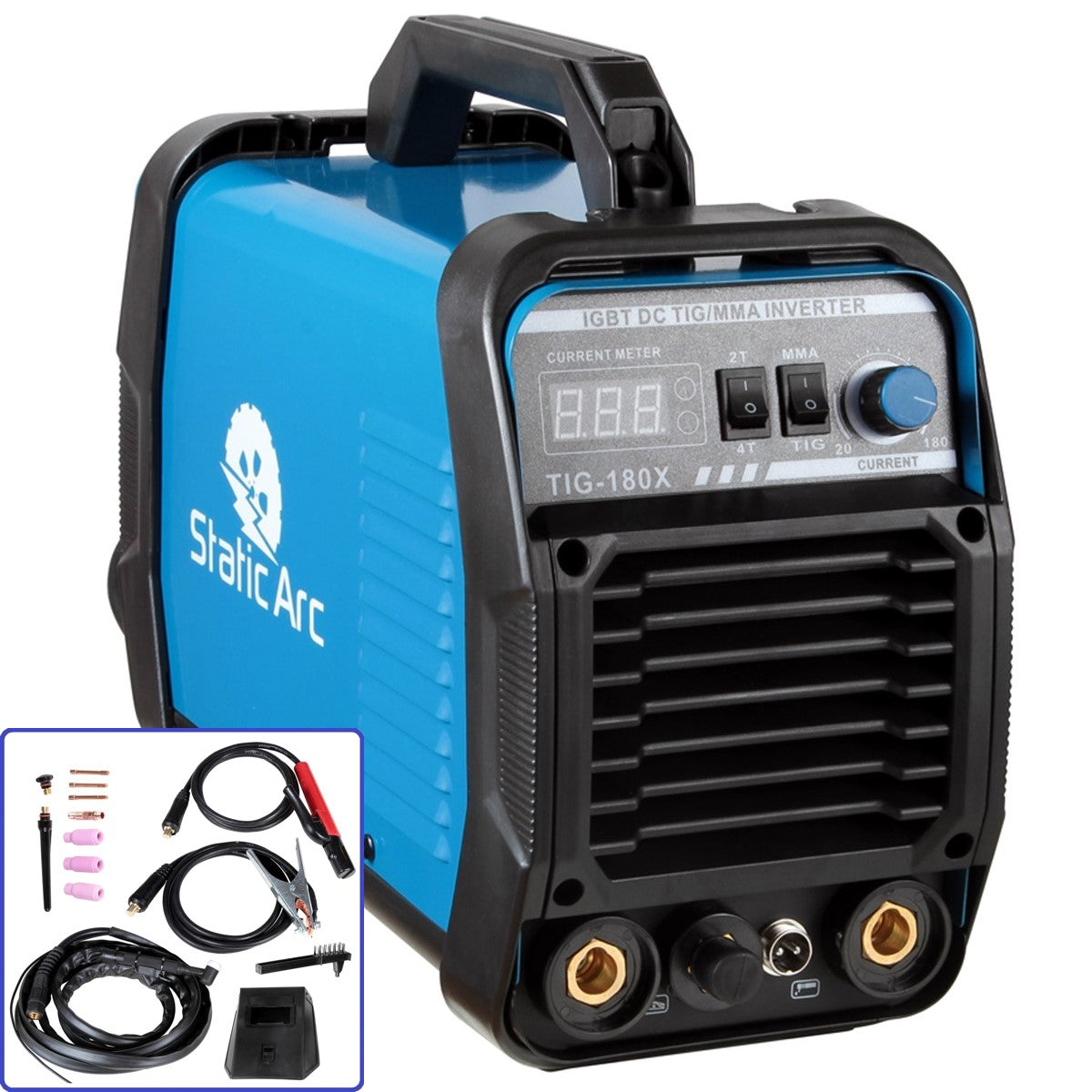

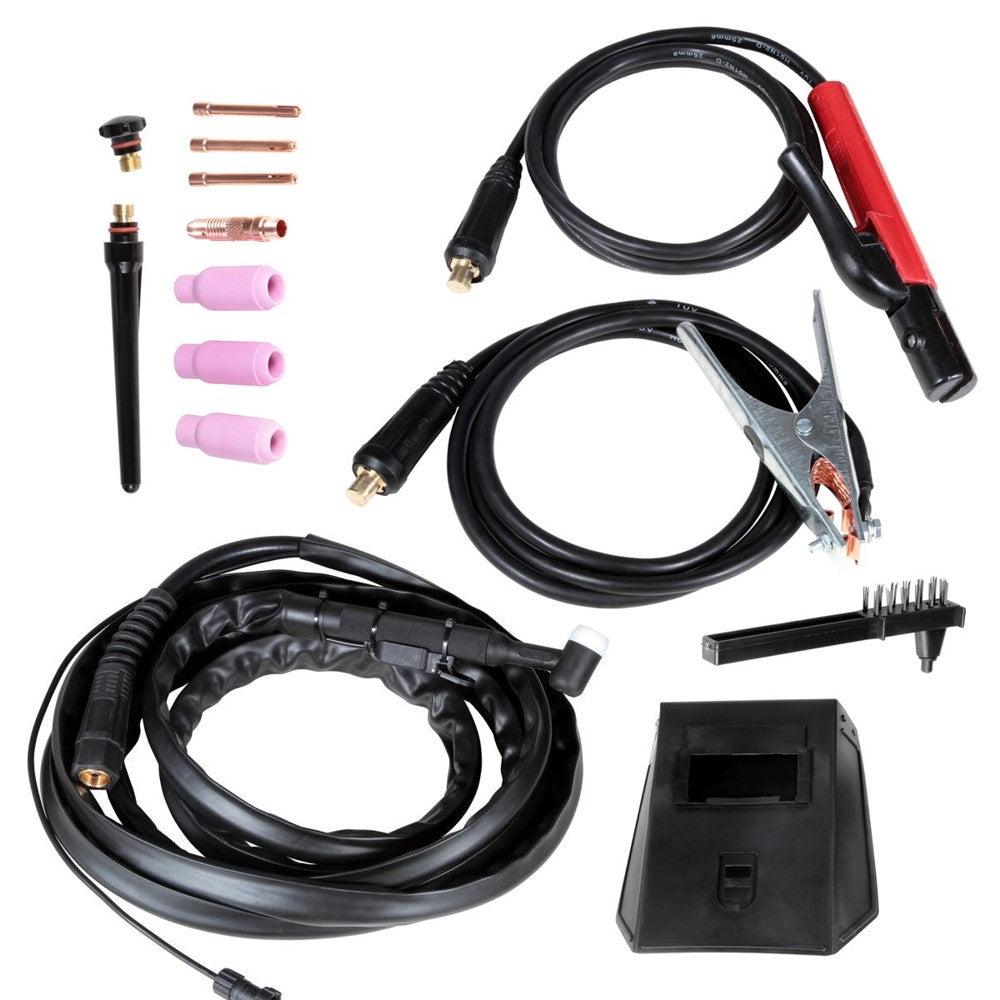

PACKAGE
- TIG180 welder
- WP17 TIG welding torch, 4m
- MMA electrode holder, 2m
- Earth clamp, 2m
- TIG consumables: 1x long back cap, 1x short back cap, 3x ceramic cups #4/5/6, 3x collets 1.6/2.0/2.4mm, 1x collet body 2.4mm
- Face mask
- Wire brush/hammer
- User manual
