FEATURES
- 4in1 multi-function MIG (gas and gasless), MMA & TIG lift operation
- Suitable for welding mild steel, stainless steel, cast iron and aluminium (MIG)

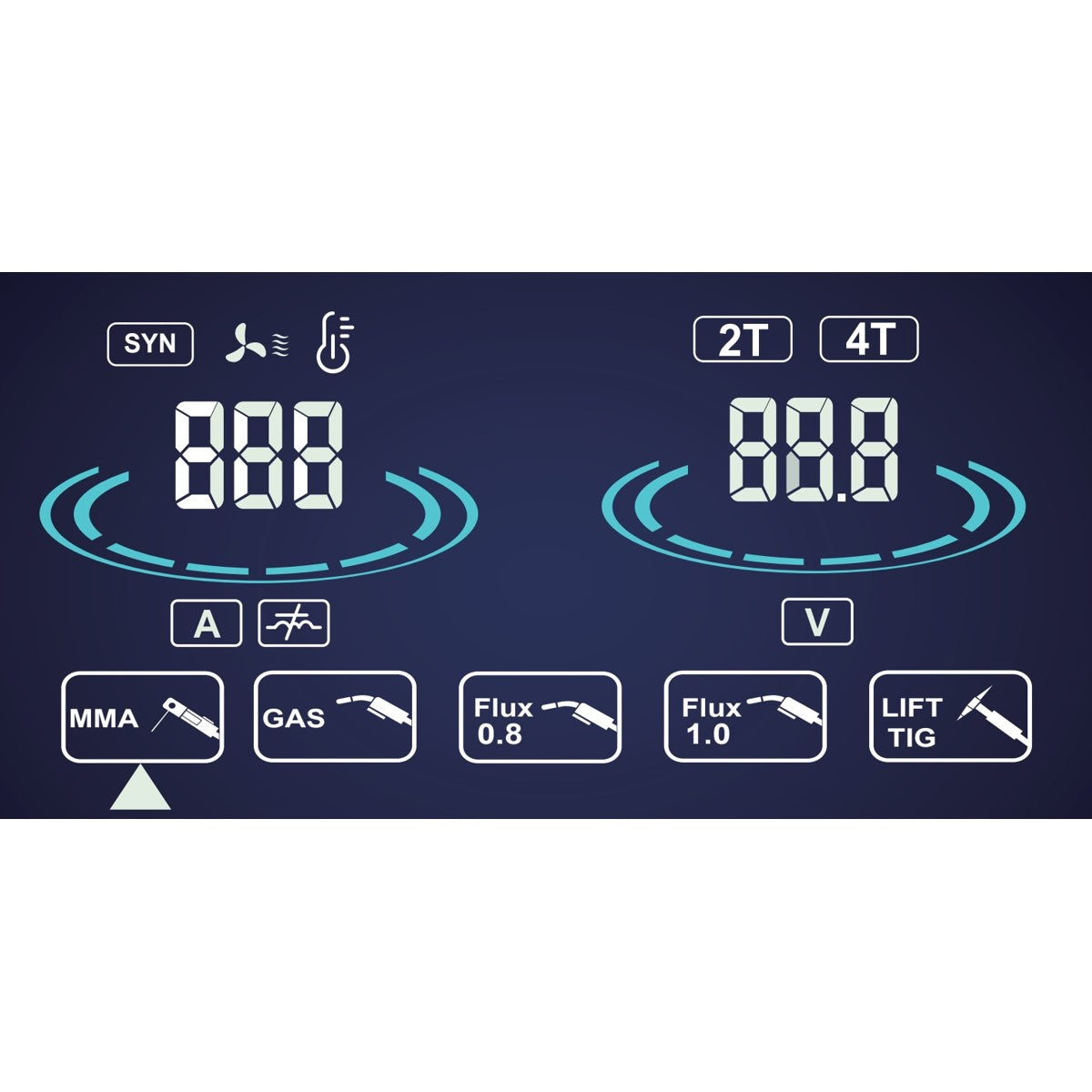

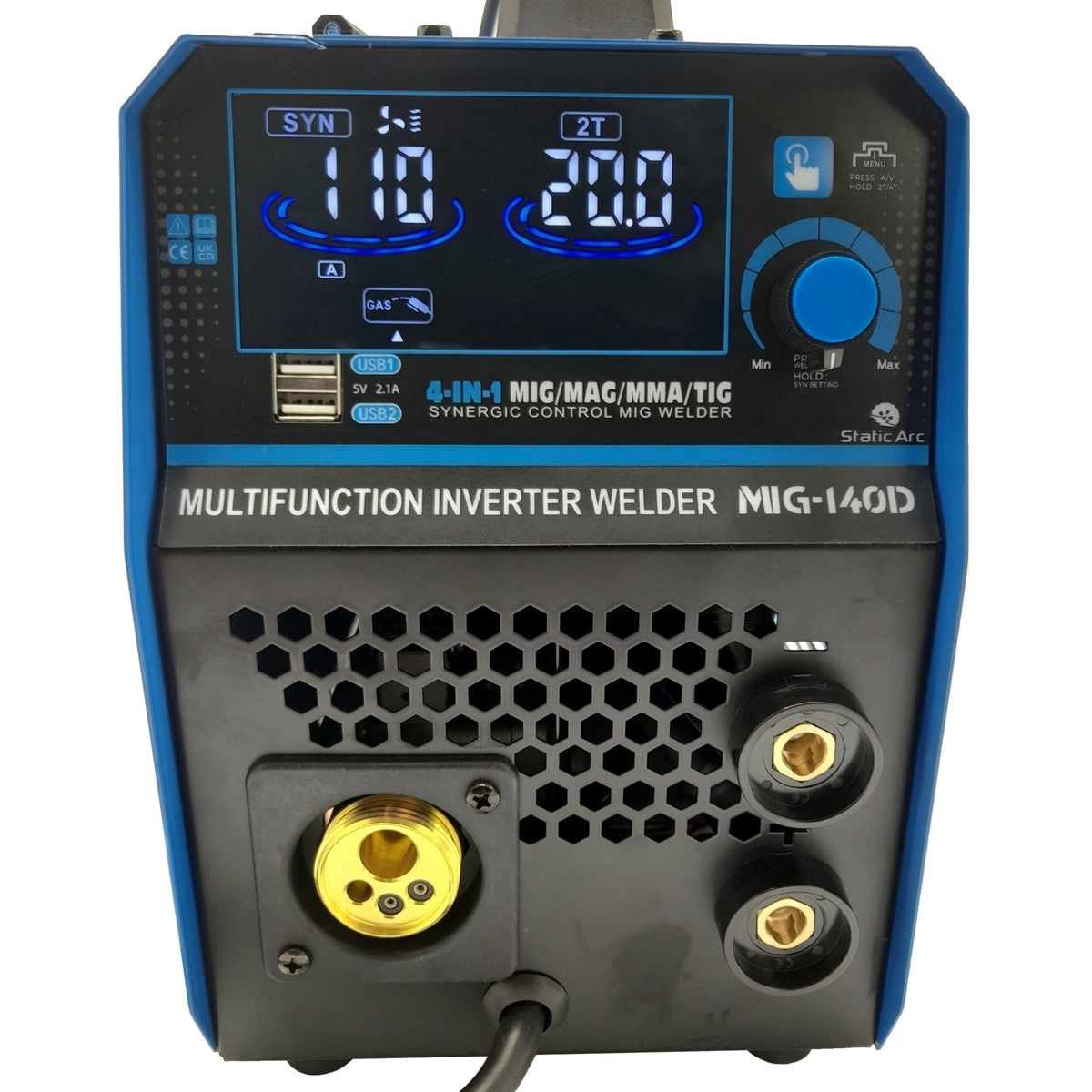

- Large digital LED control screen to set parameters (4 functions):
1/ Choose weld mode: MIG Gas, MIG Flux 0.8, MIG Flux 1.0, MMA, TIG Lift.
2/ Set individual current, voltage and wire speed.
3/ Choose 2T/4T trigger operation.
4/ Choose synergic control or manual set. Synergic function auto sets the weld parameters for MIG to simplify the setup, just set the voltage and the welder will work out the rest.
- Gas and gasless (flux core) dual MIG operation
- Removable Euro fit MIG torch (Trigger operated, Non-live)

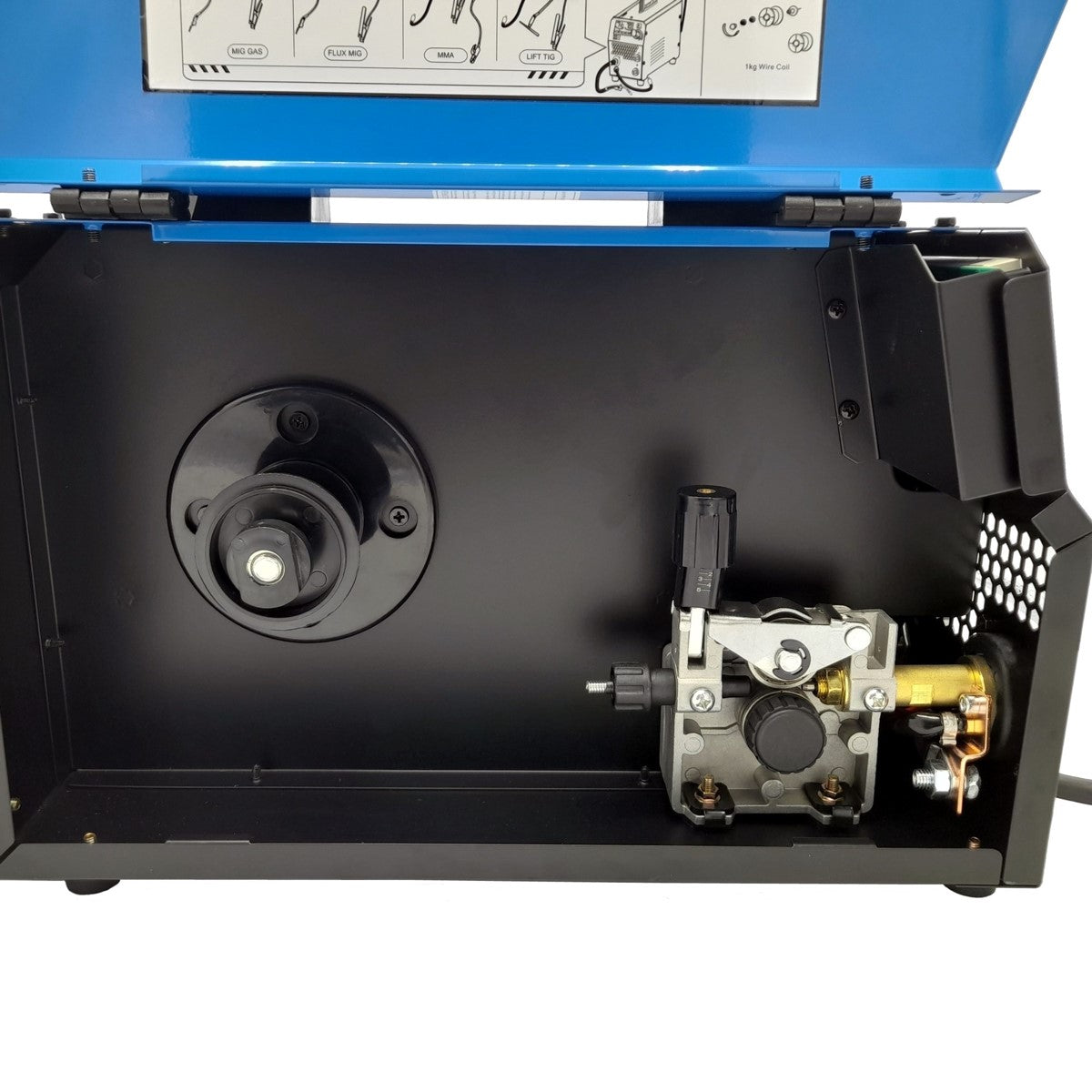

- Metal wire feed housing (more durable and reliable than cheaper plastic one)
- Suitable for loading up to 5kg MIG wire reel
- 2x USB ports for charging electronic devices on-the-go, e.g. phones
- Hot start and anti-stick enabled MMA
- Auto protection from over-heat and over-current
- Lightweight (7kg) and portable with carry handle
- Efficient IGBT inverter technology
- Fitted with UK 13A mains plug
1 YEAR WARRANTY
SPECS
- Operating voltage: AC 230V, 50/60Hz
- Power rating: 3kW
- MIG output: 30-140A (15-22V)
- MMA output: 30-140A
- TIG Lift output: 20-140A
- Duty cycle: 100% @ 110A, 60% @ 140A
- Suitable MIG wire size: 0.6-1.0mm (Fitted guide wheel 0.8/1.0mm knurled 30mm - we sell other sizes in our store)
- Suitable MIG reel size: Up to 5kg (Will fit smaller 1kg hobby reels)
- Suitable MMA electrode size: 1.6-3.2mm
- Weld thickness: Up to 4mm
- Dinse plug size: 10-25
- Torch consumables: MB15
- Gas inlet: 8mm hose tail to fit 8mm ID hose
- Standards: CE, UKCA, IP21S protection, F class insulation
- Machine weight: 7kg
- Machine size: 420 x 180 x 300mm

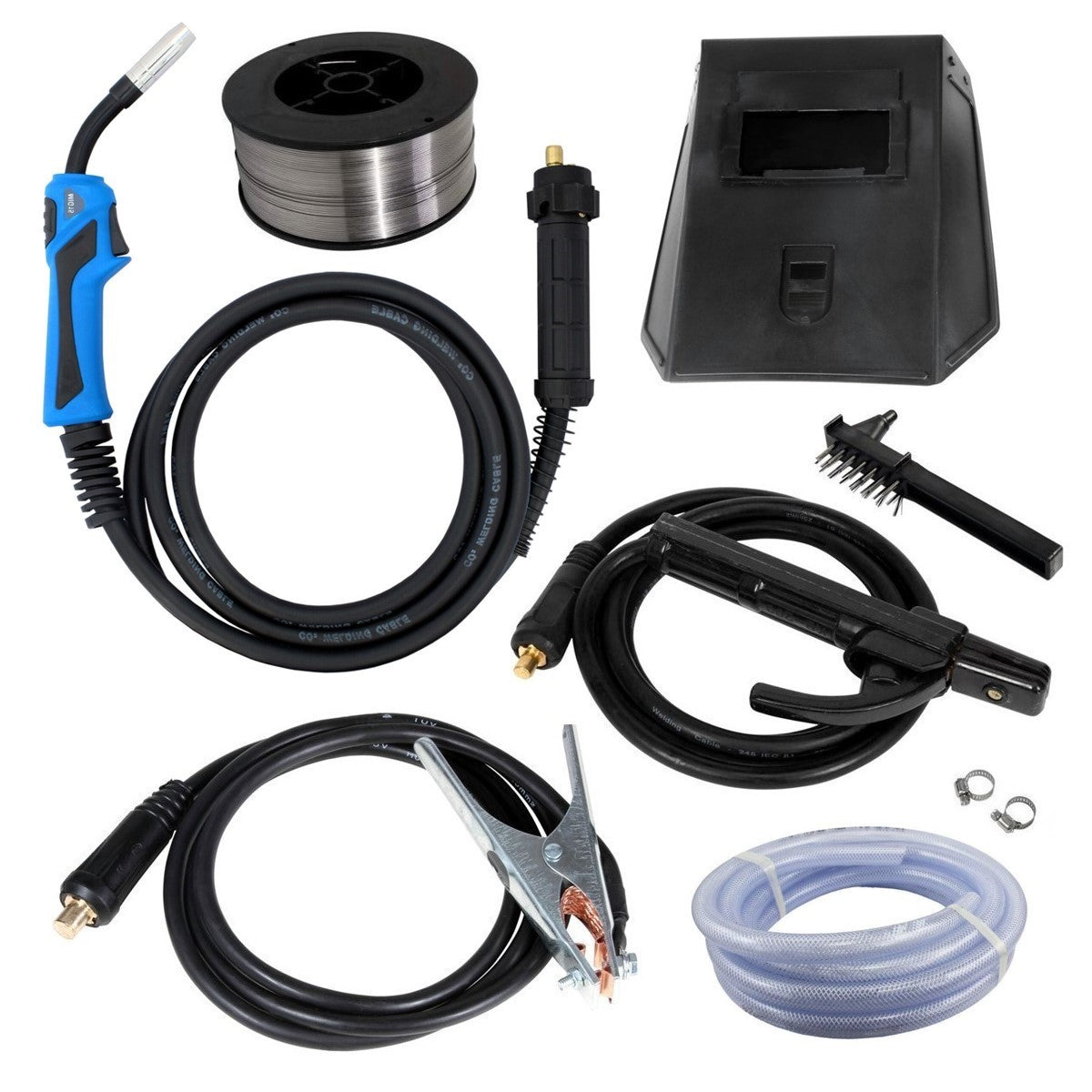

PACKAGE
- MIG140D welder
- MIG welding torch, 3m
- MMA electrode holder, 2m
- Earth clamp, 2m
- 0.8mm flux core wire reel, 0.5kg
- Gas hose, 2m
- 2x Hose clips
- 4x Spare MIG tips
- Face mask
- Wire brush/hammer
- User manual
NOTE: TIG TORCH NOT INCLUDED BUT WE SELL IN OUR STORE, MODEL WP17V
