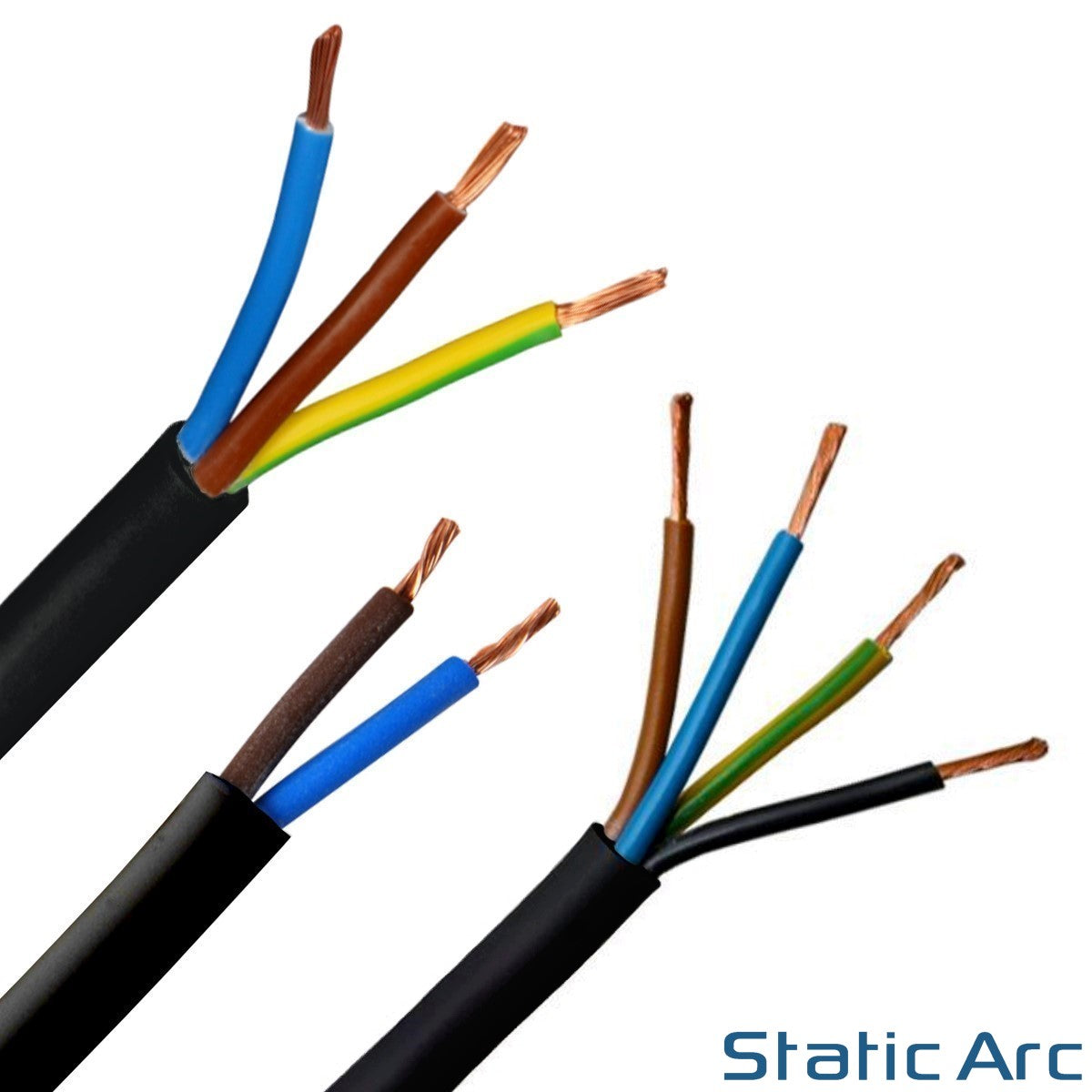

2/3/4 CORE ELECTRICAL FLEXIBLE CABLE TWIN TRIPLE WIRE PVC 0.75/1.0/1.5/2.5mm2

- Ideal for lighting and control systems; rewiring power tools, kitchen appliances and garden equipment; running outdoor extensions etc.

- Suitable for 5V, 12V, 24V, 110V and 230V operations

- Good resistance to moisture and abrasion, weatherproof.

- Flexible round PVC cable.

- Cut to any length up to 100m

2 CORE (3182Y) - Blue, Brown Core

- 0.75mm2 - Overall diameter: 7mm. Current rating: 10A

- 1mm2 - Overall diameter: 7mm. Current rating: 14A

- 1.5mm2 - Overall diameter: 8mm. Current rating: 18A

- 2.5mm2 - Overall diameter: 9mm. Current rating: 24A

3 CORE (3183Y) - Blue, Brown, Green/Yellow Core

- 0.75mm2 - Overall diameter: 8mm. Current rating: 8A

- 1mm2 - Overall diameter: 8mm. Current rating: 12A

- 1.5mm2 - Overall diameter: 9mm. Current rating: 16A

- 2.5mm2 - Overall diameter: 10mm. Current rating: 21A

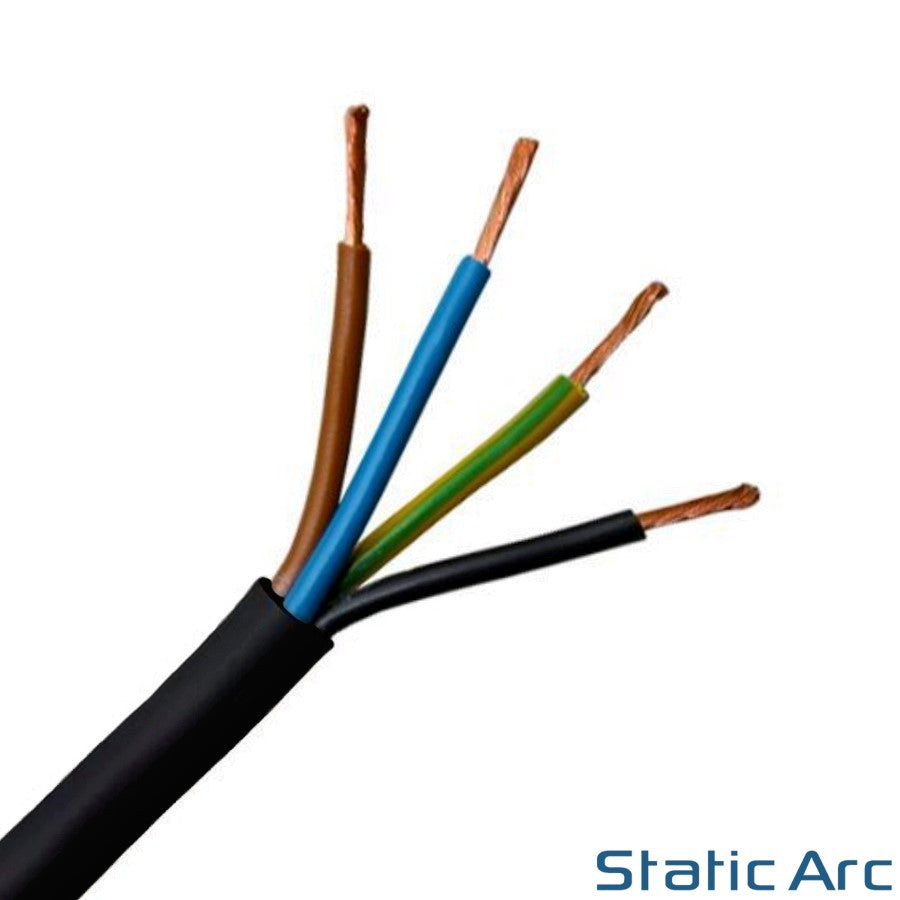

4 CORE (3184Y) - Black, Brown, Green/Yellow, Grey Core

- 0.75mm2 - Overall diameter: 8mm. Current rating: 6A

- 1mm2 - Overall diameter: 9mm. Current rating: 10A

- 1.5mm2 - Overall diameter: 10mm. Current rating: 14A

- 2.5mm2 - Overall diameter: 11mm. Current rating: 18A

ALL CABLES

- Conductor: Stranded copper

- Number of strands: 7

- Insulation: Flexible black round PVC sheath

- Temperature rating: -10°C to +70°C

- Standards: RoHS Certified, BS6500 compliant

CHOOSE THE CABLE YOU REQUIRE FROM THE OPTIONS AT THE TOP OF THE PAGE
